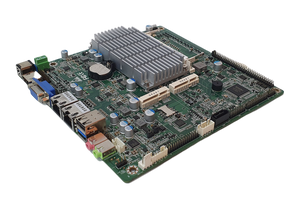

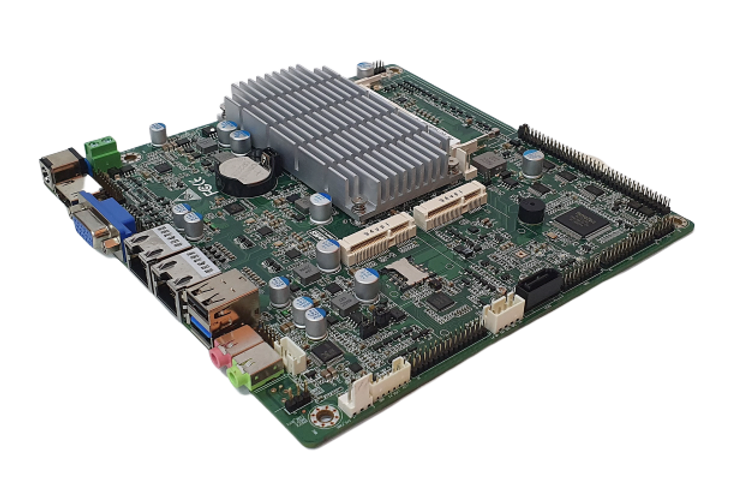

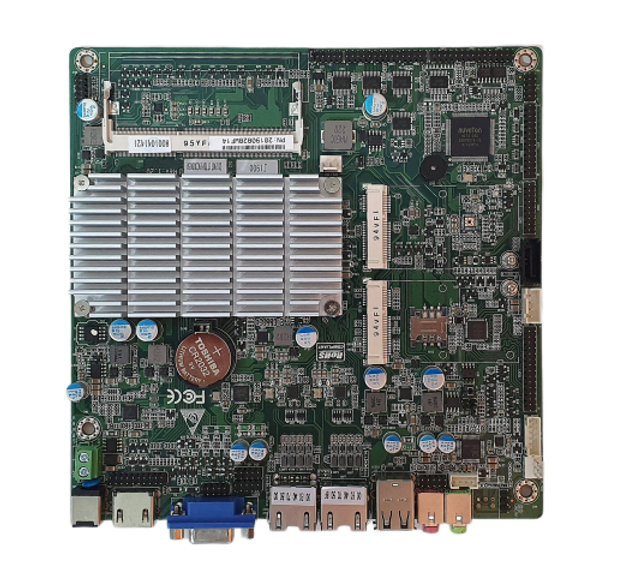

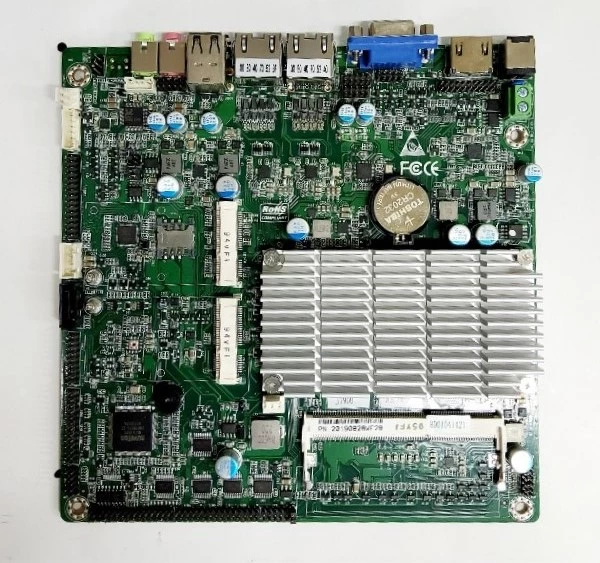

JPS-J1900-COM*5

http://kakao.jonathan.co.kr 상담문의

조나단씨엔티 산업용컴퓨터

KC인증 R-R-JPW-JPS-J1900



베이트레일,J1900/ COM*6 RS232*5 RS485*1 / LVDS



Features

- Intel Bay Trail J1900 Quad 2.0GHz

- 1*DDR3 So-DIMM 1066/1333MHz up to 8GB

- Supports Display HDMI, VGA, LVDS

- 2* LAN, 5*RS232 ( COM 1, 2, 4, 5, 6)

- 1*MSATA, 1*Mini-Pcie, 1*USB2.0, 1*USB 3.0 [Pinheader USB2.0*4]

- 12V DC input

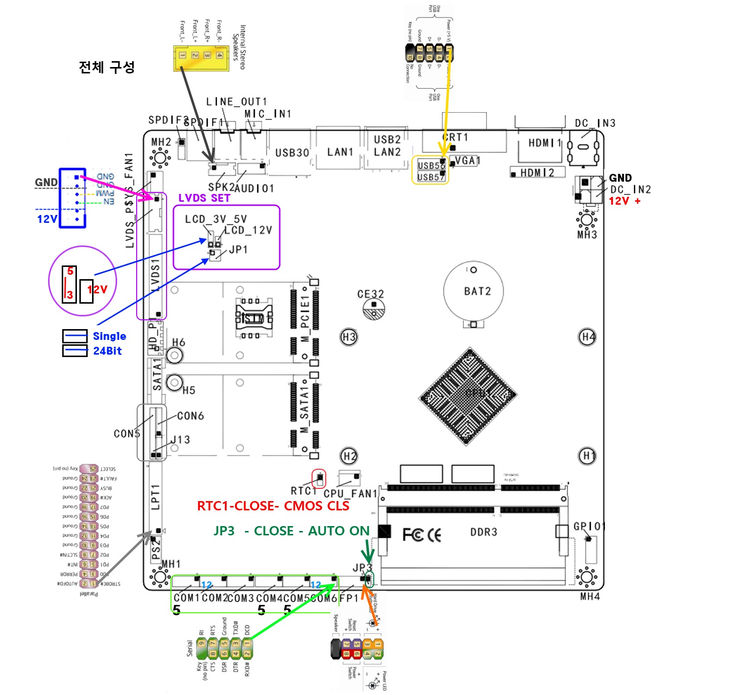

COM 1, 4, 5 Pin10 5V

COM 2, 6 Pin10 12V

COM 3 (optional for RS232 or RS485/RS422)





















상기 보드는 LAN 2Port 장착이 기본이므로 USB 3.0 * 1 / 2.0*1

[Pinheader 확장 2.0*4Port]지원 됩니다.

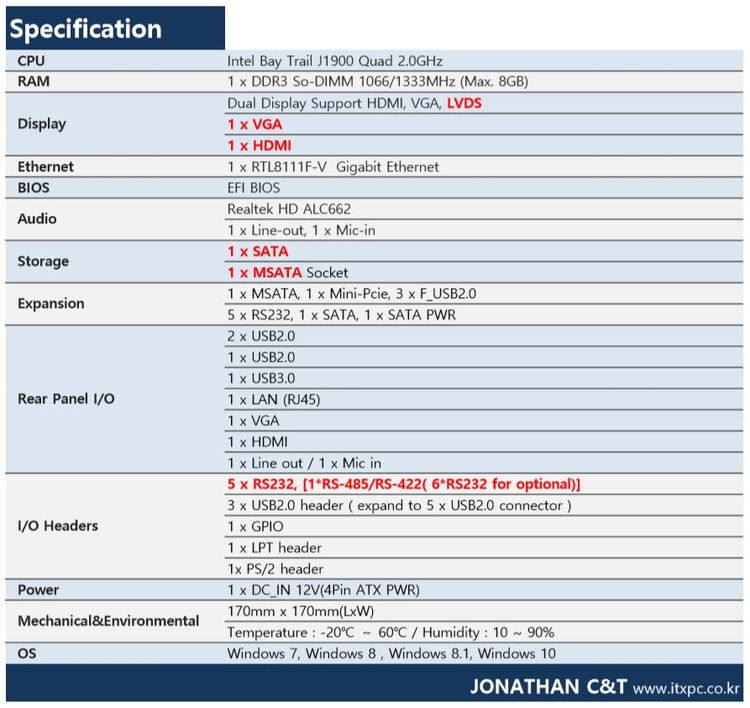

CPU

- Intel Bay Trail J1900 Quad 2.0GHz

RAM

-1 x DDR3 So-DIMM 1066/1333MHz (Max. 8GB)

Display

- Dual Display Support HDMI, VGA, LVDS

- 1 x VGA 1 x HDMI

Ethernet

- 1 x RTL8111F-V Gigabit Ethernet

BIOS

- EFI BIOS

Audio

- Realtek HD ALC662 / 1 x Line-out, 1 x Mic-in

Storage

- 1 x SATA , 1 x MSATA Socket

Expansion

- 1 x MSATA, 1 x Mini-Pcie, 3 x F_USB2.0

- 5 x RS232, 1 x SATA, 1 x SATA PWR

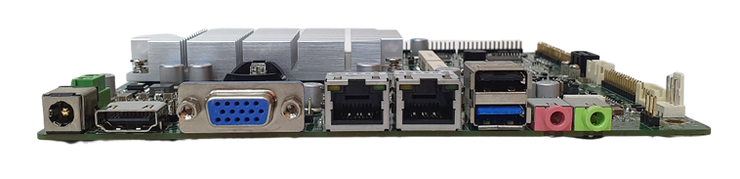

Rear Panel I/O

- 2 x USB2.0, 1 x USB2.0, 1 x USB3.0 , 1 x LAN (RJ45)

- 1 x VGA, 1 x HDMI, 1 x Line out / 1 x Mic in

I/O Headers

- 5 x RS232, [1*RS-485/RS-422( 6*RS232 for optional)]

- 3 x USB2.0 header（expand to 5 x USB2.0 connector）

- 1 x GPIO, 1 x LPT header, 1x PS/2 header

Power

- 1 x DC_IN 12V(4Pin ATX PWR)

Mechanical&Environmental

- 170mm x 170mm(LxW)

Temperature : -20℃ ～ 60℃ / Humidity : 10 ~ 90% ​

OS

- Windows 7, Windows 8 , Windows 8.1, Windows 10

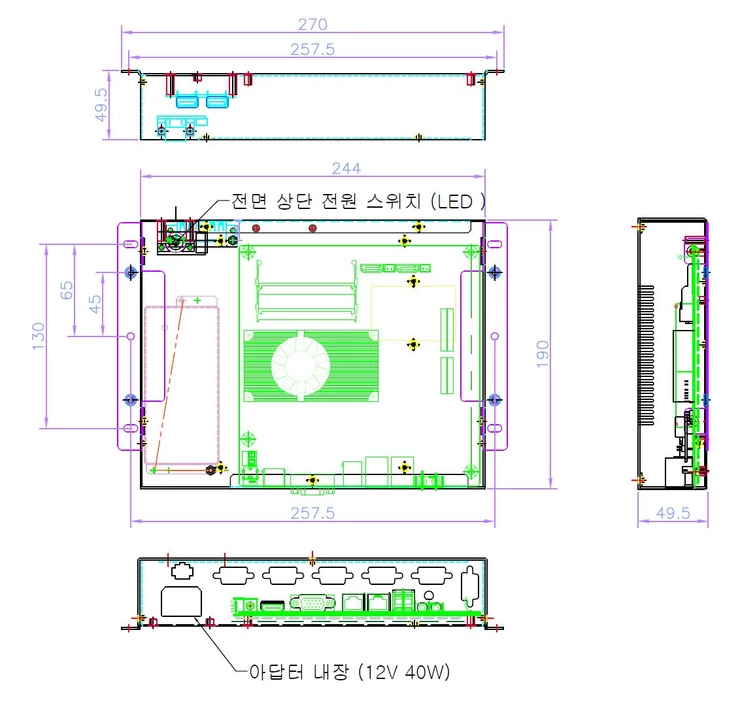

적용 CASE
