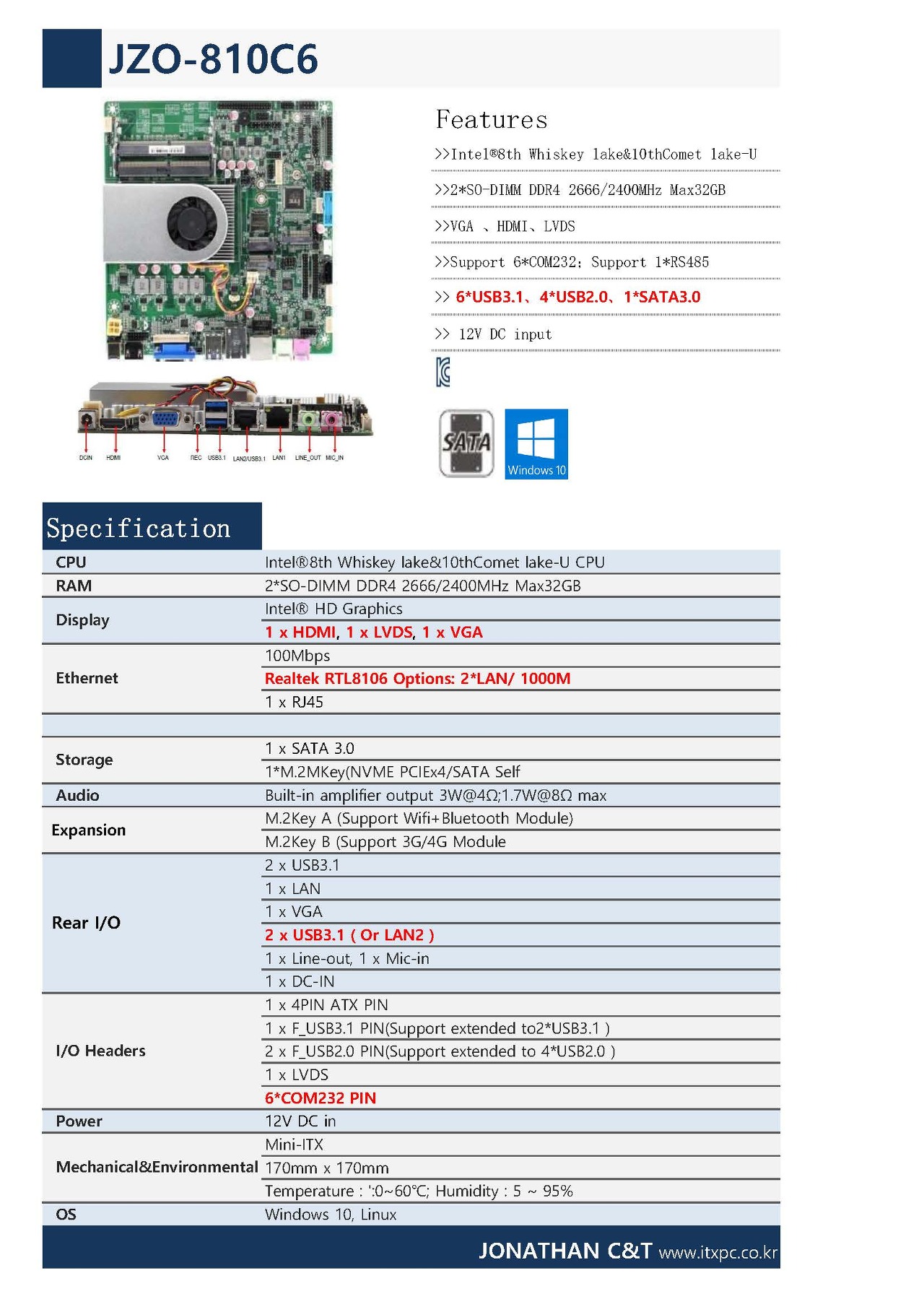

JZO-810-C6





  Features

>> Intel®8th Whiskey lake&10thComet lake-U

>> 2*SO-DIMM DDR4 2666/2400MHz Max32GB

>> VGA 、HDMI、LVDS

>> Support 6*COM232；Support 1*RS485

>> 6*USB3.1、4*USB2.0、1*SATA3.0

>> 12V DC input

---

  Specification

CPU	Intel®8th Whiskey lake&10thComet lake-U CPU
RAM	2* SO-DIMM DDR4 2666/2400MHz Max32GB
Display	Intel® HD Graphics  1 x HDMI, 1 x LVDS, 1 x VGA
Ethernet	100Mbps Realtek RTL8106 Options : 2*LAN1000M 1 x RJ45
Storage	1 x SATA 3.0 　 1*M.2MKey(NVME PCIEx4/SATA Self
Audio	Built-in amplifier output 3W@4Ω;1.7W@8Ω max
Expansion	M.2Key A (Support Wifi+Bluetooth Module) M.2Key B (Support 3G/4G Module
Rear I/O	2 x USB3.1 　 1 x LAN 　 1 x VGA  　 2 x USB3.1（Or LAN2） 　 1 x Line-out, 1 x Mic-in 　 1 x DC-IN
I/O Headers	1 x 4PIN ATX PIN 　 1 x F_USB3.1 PIN(Support extended to2*USB3.1） 2 x F_USB2.0 PIN(Support extended to 4*USB2.0） 1 x LVDS 　 6*COM232 PIN
Power	12V DC in
Mechanical&Environmental	Mini-ITX (170mm x 170mm) Temperature : ':0~60℃; Humidity : 5 ~ 95% ​
OS	Windows 10, Linux
