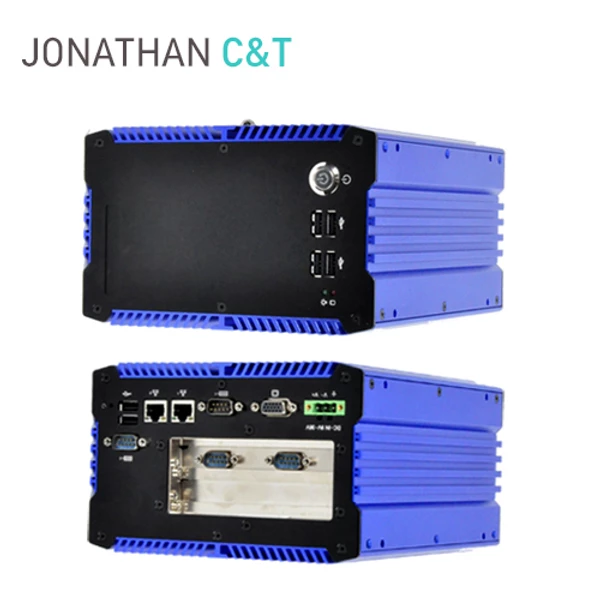

JCT-FN701/I5 =>XP설치가능



KC인증 MSIP-REM-JPW-JCT-FN701





CPU Intel Core i5 3317U 2.0G Dual Core

RAM 4G DDR3 내장

Display 1 x LVDS, 1 x D-SUB

Storage 1 x SATA

Ethernet 10/100/1000Mbps

2 x RJ45(Intel 82583V Gigabit LAN)

Wake on LAN

BIOS AMI BIOS, 32MBit BIOS

Audio Realtek ALC662 6-Channel HD Audio

Front-Panel I/O 4 x USB2.0

Power on/off button

Internal I/O 1 x LVDS

1 x USB 2.0

2 x PCI(32Bit)

1 x KBMS2 header

4 x RS232 header

Back-Panel I/O 2 x RS232

1 x D-SUB

2 x RJ45 LAN

2 x USB2.0

1 x DC 12V input

Power DC 12V

Dimension 215 x 180 x 115mm

Weight 4.0 kg

Environmental Operating Temperature : -10℃～60℃ / Humidity : 0% ~ 95%

OS Windows XP, Windows7, Windows8, Windows10, Linux
