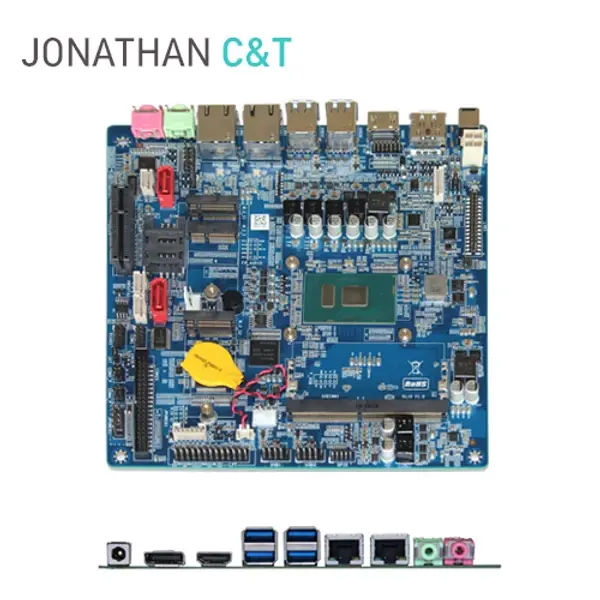

JMT-KL10/3865

신채운 2022. 5. 2. 14:59

KC인증 R-REM-JPW-JCT-LP-KL10

3865U/COM6(RS232*5,RS485*1)/LVDS orDP







CPU Intel Celeron 3865 (1.8GHz, dual core, TDP 15W)

RAM Dual channel 2 x DDR4 2133MHz (Max. 32GB)

Display GPU Intel HD Graphics 610/620(Based on CPU)

1 x HDMI 1.4

1 x DP 1.2

1 x eDP(Optional with LVDS)

Multiple Display HDMI+DP+eDP or LVDS

Ethernet 10/100/1000Mbps

Intel i211

2 x RJ45

Wake on LAN

Audio Realtek HD ALC662

Line-out, MIC-in, in one, audio header, amplifier header

Storage 1 x M.2 for wifi / 1xM.2 for 4G or 2242 SSD / 1xM.2 for 2242 SSD

2 x SATA3.0

EMMC(optional)

Expansion 1 x PCIe×4

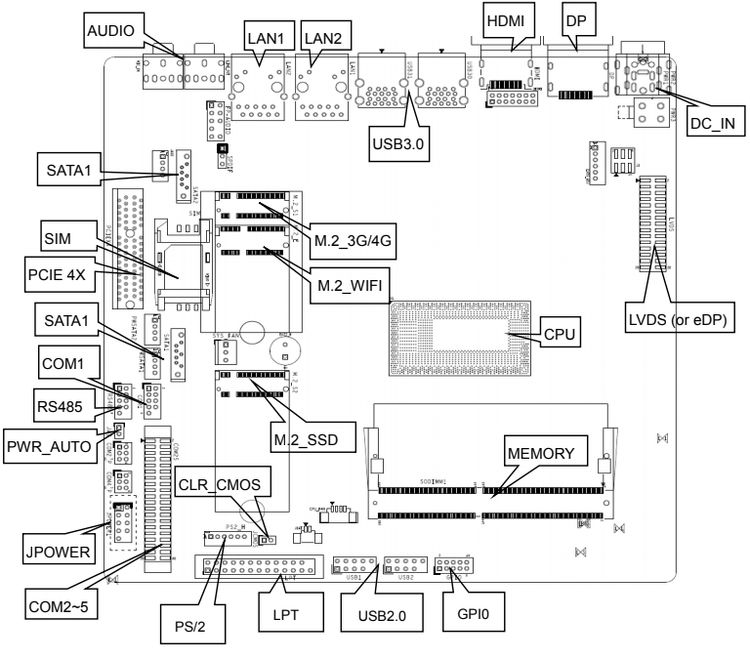

Rear Panel I/O 1 x Line-out, 1 x Mic-in in on

2 x LAN

4 x USB3.0

1 x DP

1 x HDMI

I/O Headers 5 x RS232 / 1 x RS485

4 x USB 2.0 header

8 x GPIO

HDMI header

1xJLPT

1x PS2_H

Power 1x12V DC-IN/4 PIN Power (For fan and SATA)

Mechanical&Environmental Mini-ITX

170mm x 170mm(LxW)

Operating Temp : '-40℃~60℃ / Storage Temp : '-40℃~80℃

OS Win10 64bit , Linux 32/64bit
