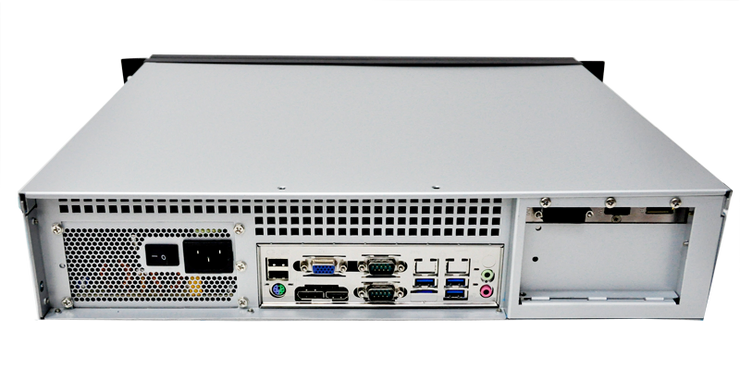

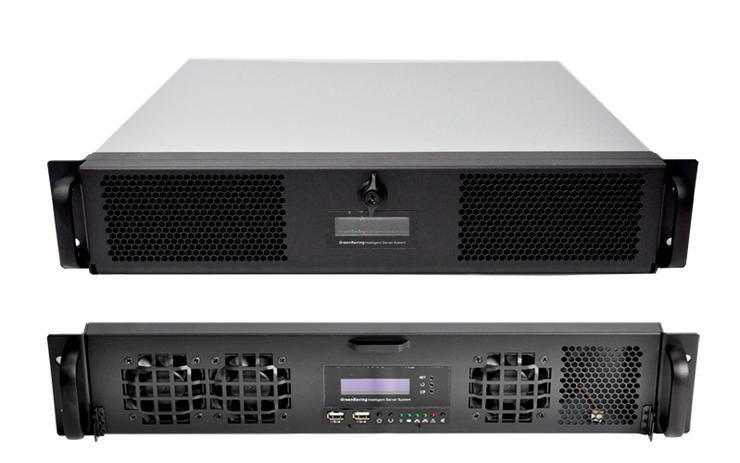

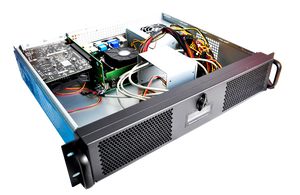

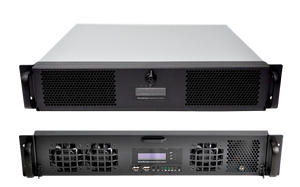

JCT-RACK2U-H110/I5

=> 2U RACK 사이즈이지만 LP그래픽카드가 아닌 일반그래픽카드 사용가능

=> 6Th / 7Th CPU

=> DDR4 일반메모리

=> M-ATX POWER























---

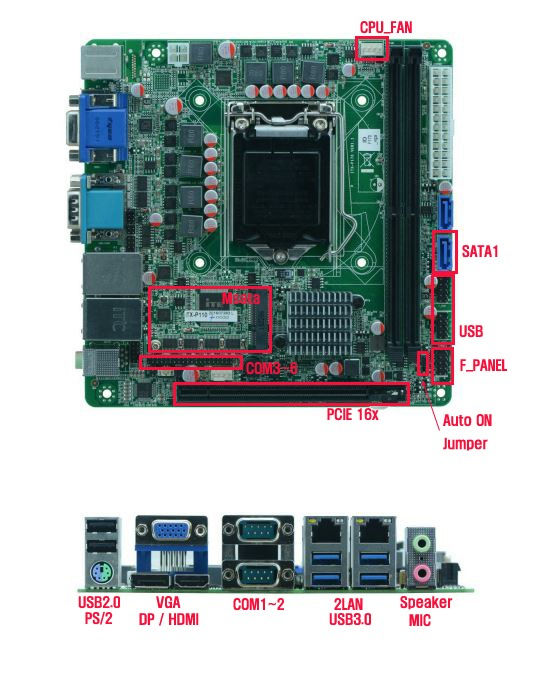

Soket : LGA 1151 6Th 7Th Intel Core i3/i5/i7/Celeron/Pentium Skylake-S

Chip : H110

RAM : 2*DDR4 2133/1866MHz (Max. 32GB)

VGA : Intel HD

         1*VGA : 1920x1200@60Hz

         1*DP : 4096x2304@60Hz

         1*HDMI 1.4 : 2560 x 1600@60Hz

LAN : 2*RTL8111F

SOUND : ALC662 6Ch

Port : 1*PCIE3.0 x16

         1*Mini-PCIE/Wifi/SSD

         1*SATA3.0

I/O : 1*PS/2

        1*DB15 VGA port

        1*HDMI v1.4

        1*Display Port

        2*DB9 RS232

        2*USB 2.0

        4*USB 3.0

        2*RJ45

        1*Speaker/MIC

Bios : 64Mb Flash ROM

OS : Windows 10 , Windows 8 , Windows 7 , Linux

Power : ATX 24Pin & 4Pin

Size : 170mm x 170mm

Temperature : -10℃ ~ 60℃

Humidity : 5 ~ 95%

---
